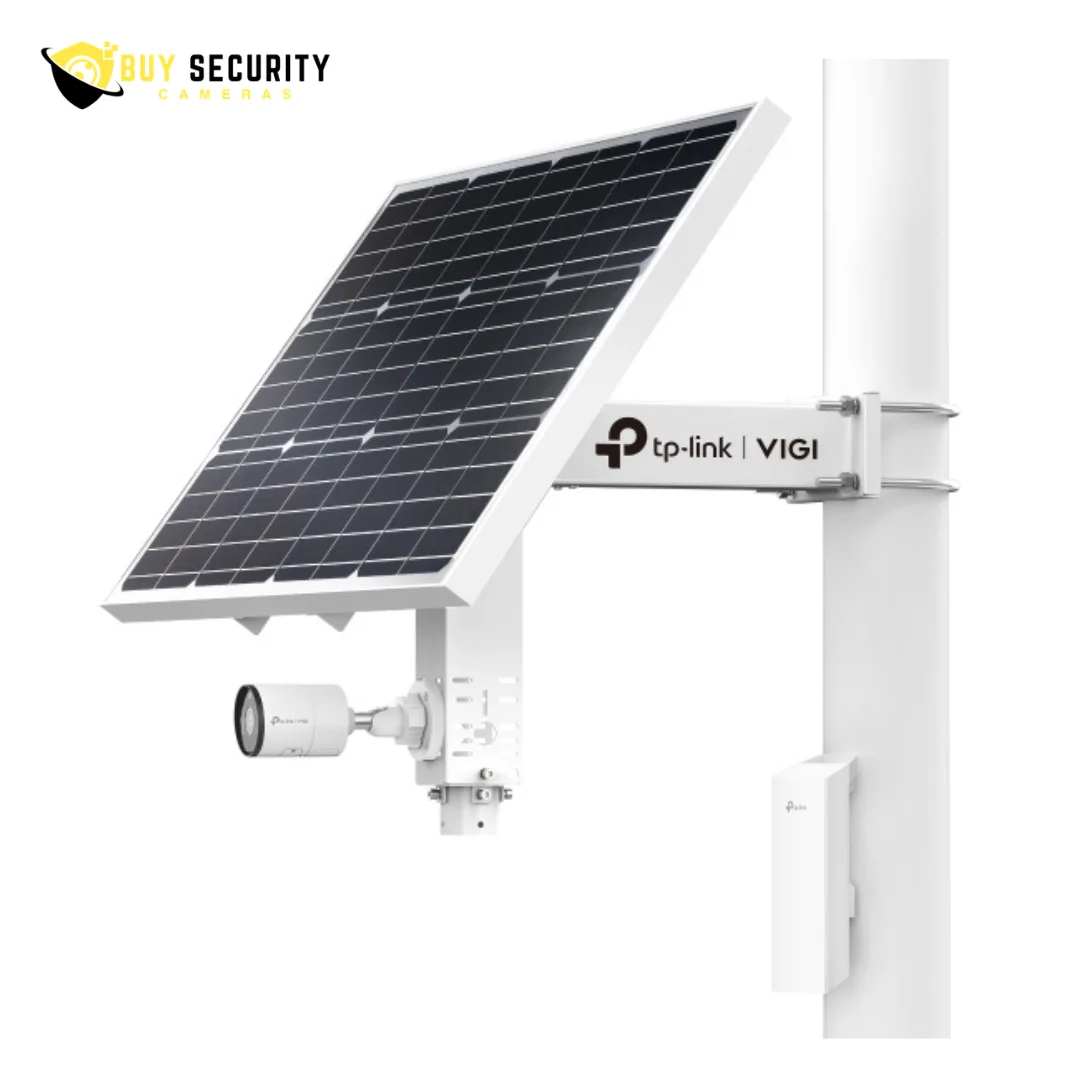

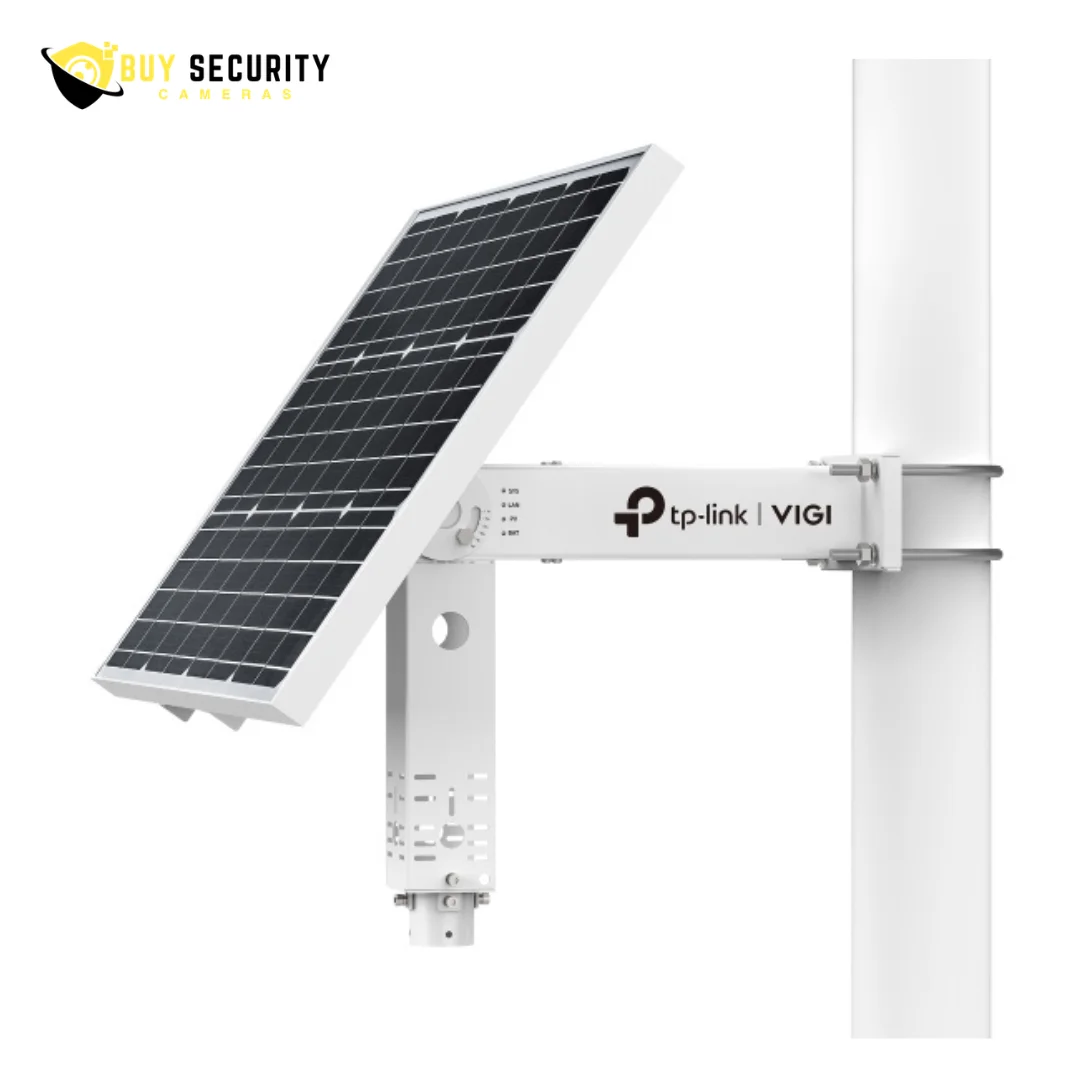

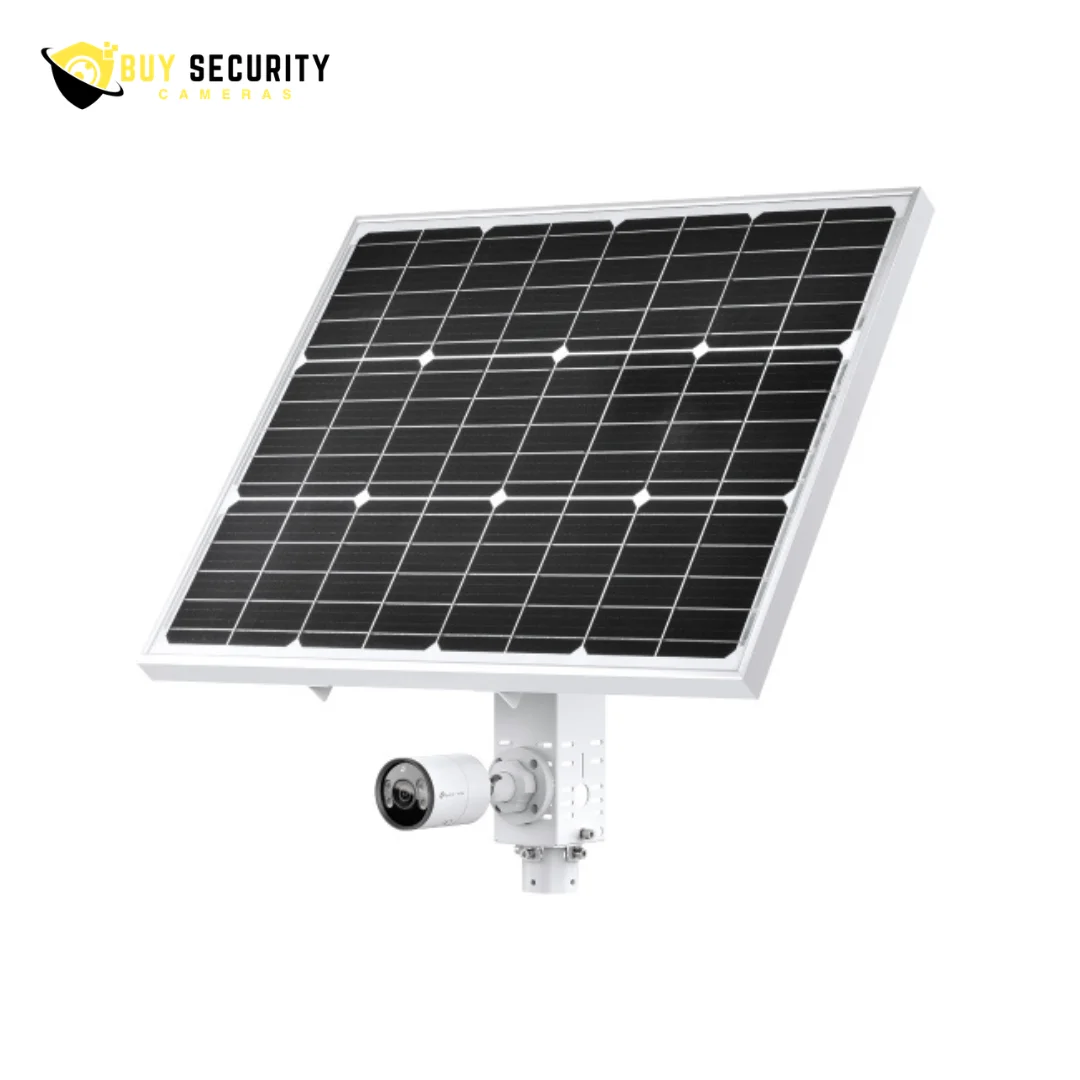

VIGI 60W Intelligent Solar Power Supply System

VIGI 60W Intelligent Solar Power Supply System – Reliable Off-Grid Power for Security Cameras

The VIGI 60W Intelligent Solar Power Supply System eliminates the limitations of traditional wired camera installations. This all-in-one solar solution delivers consistent, maintenance-free power to VIGI security cameras in locations where running electrical cable is impractical, expensive, or impossible.

Complete Off-Grid Power Solution

The system combines a high-efficiency 60W monocrystalline photovoltaic panel with a substantial 31.2Ah/10.8V lithium battery pack. Together they provide approximately 337Wh of total energy storage—enough to power a VIGI 8MP camera through multiple overcast days without sunlight. No extension cords. No electrician visits. Just reliable, renewable energy wherever surveillance is needed.

Maximum Power Point Tracking (MPPT) Charging Controller

Unlike basic PWM controllers that waste available solar energy, the integrated MPPT controller continuously optimizes the panel’s operating voltage to extract maximum available power. This advanced tracking algorithm delivers up to 30% more charging efficiency compared to conventional controllers—critical during winter months, cloudy conditions, or partial shading scenarios.

Intelligent Auxiliary Heating Technology

Cold climates challenge lithium battery performance. The VIGI solar system incorporates intelligent auxiliary heating that automatically activates when temperatures drop below optimal charging thresholds. This technology ensures the battery maintains safe charging temperatures even in sub-zero conditions, protecting long-term battery health and guaranteeing reliable operation through winter.

Three DC Voltage Output Ports

The system features three independently controlled DC output ports with configurable voltage settings (5V/9V/12V). This flexibility supports simultaneous power delivery to multiple VIGI cameras or a combination of cameras and network equipment. Each port can be managed remotely through the VIGI platform, enabling scheduled power cycling or on-demand reboots.

Modular Design for Simplified Maintenance

All components—panel, battery, controller, and mounting hardware—are designed as discrete modules. This architecture simplifies installation and enables individual component replacement if ever required. Field service becomes a matter of swapping modules rather than replacing entire systems.

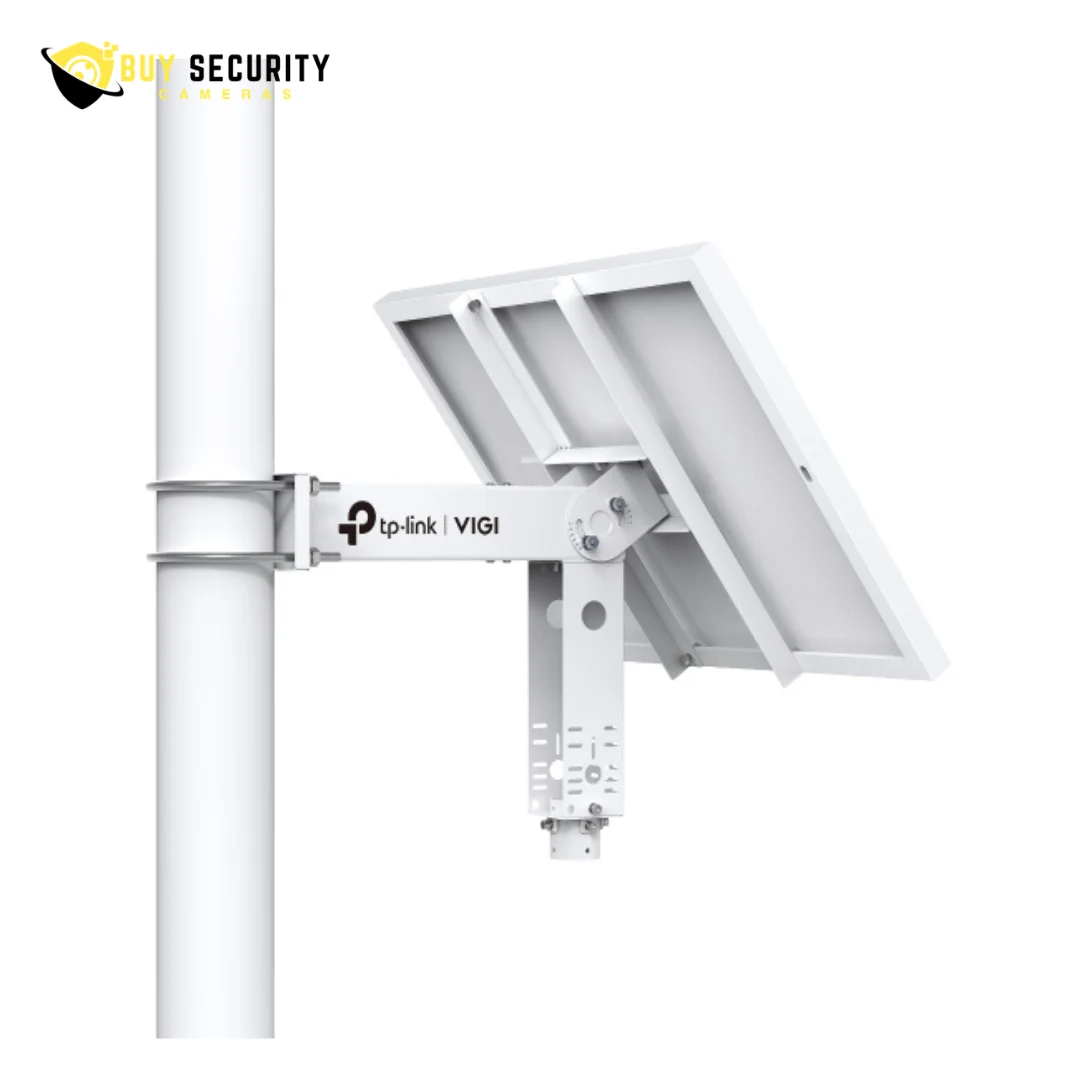

Five Adjustable Angles for Optimal Sun Exposure

The mounting bracket supports six preset angles: 5°, 15°, 25°, 35°, 45°, and 55°. This adjustability ensures the panel can be positioned for maximum solar gain regardless of geographic latitude or seasonal sun path variations. Correct angling improves annual energy yield by up to 25% versus fixed horizontal mounting.

IP66 Weatherproof Construction

The entire system carries IP66 certification, confirming complete protection against dust ingress and powerful water jets from any direction. The rugged aluminum frame resists corrosion in coastal environments, while the tempered glass panel surface withstands hail impact and debris strikes.

Remote Management Through VIGI Platform

Monitor system health from anywhere through the VIGI mobile app or web portal. Real-time metrics include battery charge percentage, panel output wattage, temperature readings, and historical performance graphs. Low-battery alerts and fault notifications ensure proactive maintenance before power interruptions occur.

Simple Installation

The system arrives pre-configured with clear documentation and all necessary mounting hardware. Typical installation requires only basic tools and approximately 30-45 minutes. Pole-mount and wall-mount options accommodate diverse deployment scenarios.

Ideal Applications:

• Remote construction site monitoring

• Agricultural and farm surveillance

• Perimeter security for rural properties

• Parking lots without electrical infrastructure

• Temporary event security deployments

• Wildlife observation stations

What’s Included:

• 60W solar panel with mounting bracket

• 31.2Ah lithium battery pack

• MPPT charge controller module

• 3× DC output cables

• All mounting hardware

• Quick installation guide

Order the VIGI 60W Intelligent Solar Power Supply System and deploy security cameras anywhere the sun shines.
