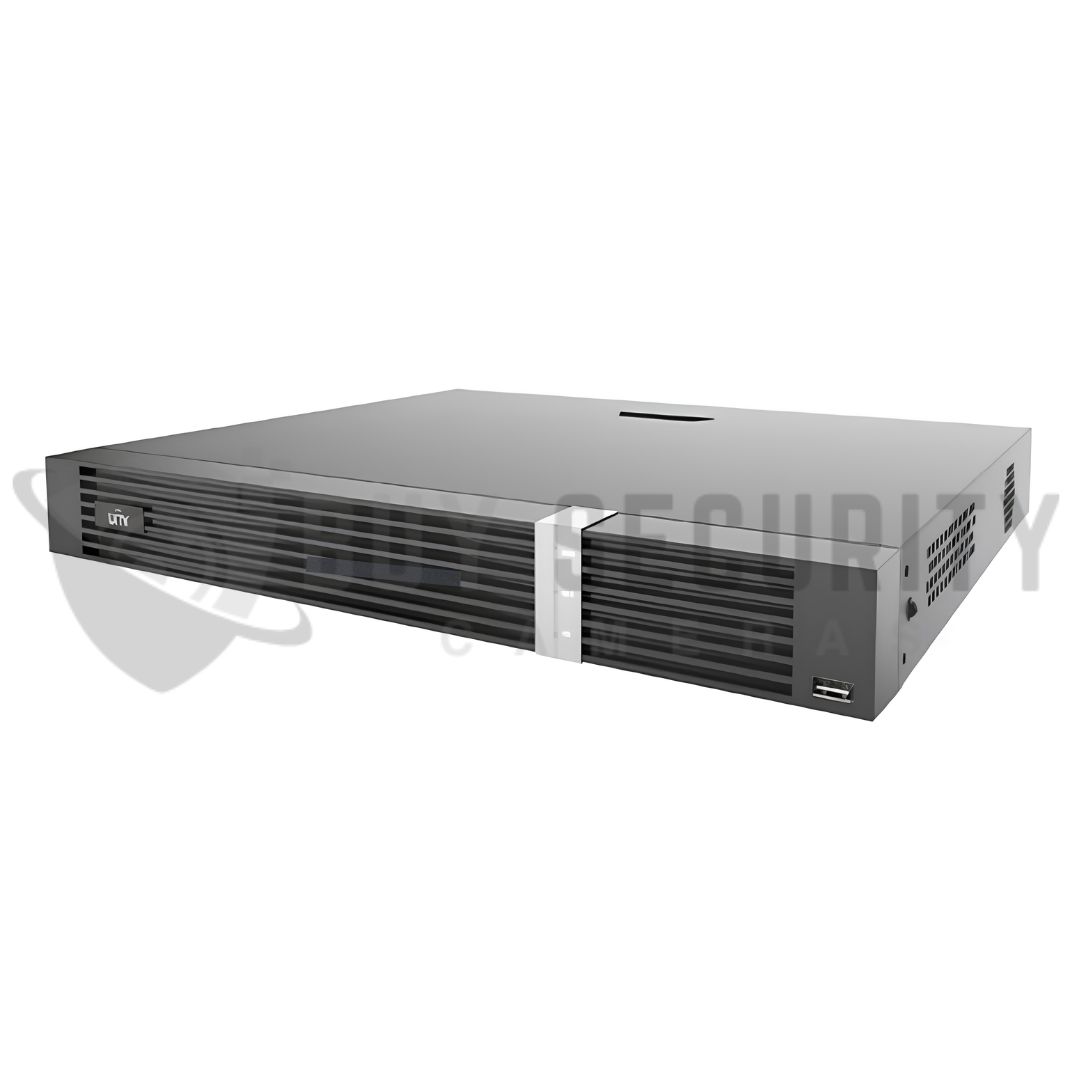

Uniview 8CH Network Video Recorder: upto 12MP, 160MBPS INPUT, 2-SATA HDD, Prime Series – NVR302-08E2-P8-IQ
online-only

Name: Uniview 8CH Network Video Recorder: upto 12MP, 160MBPS INPUT, 2-SATA HDD, Prime Series - NVR302-08E2-P8-IQ
Brand: Buy Security Cameras
SKU: 33040
Price: 399 AUD
Availability: InStock
Rating: 5 (1 reviews)

$399.00

Support Ultra H.265/H.265/H.264 video formats

8/16-channel input

Plug & Play with 8/16 independent PoE network interfaces

Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution

Support HDMI and VGA simultaneous output

Up to 12 Megapixels resolution recording

2 SATA HDDs, Up to 10TB for each HDD

Various fisheye dewarping modes for live view and playback for both web interface and GUI

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Description
Reviews (0)

Description

Uniview Prime Series 8CH Black Ai NVR 8x POE Upto 12mp Ultra265/h.265/4 1x Nic 160mbps Input 1ch@12mp Decoding Metal 2x Sata HDD Port Up To 10TB Each 1x HDMI/ 1x VGA 1x Audio In 1x Audio Out 8x Alarm In 2x Alarm Out 2x Rear USB Port 52vdc Rs485

Tech Specifications:

Univew Network Video Recorder: 8 Channel Prime AI NVR 8x POE – NVR302-08E2-P8-IQ

Model	NVR302-08E2-P8-IQ		NVR302-16E2-P16-IQ
Video/Audio Input
IP Video Input	8-ch		16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	Smart Off: 320Mbps Smart On: 160Mbps
Outgoing Bandwidth	Smart Off: 320Mbps Smart On: 160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	8-ch		16-ch
Live View Display	1/4/6/8/9		1/4/6/8/9/16
Corridor Mode Screen	3/4/5/7/9		3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot		16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format	Ultra 265, H.265, H.264
Live View/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	Smart Off: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1 Smart On: 1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 18 x 720P@30, 32 x D1
Hard Disk
SATA	2 SATA interfaces
Capacity	Up to 10TB for each disk
eSATA	NA
Disk Group	Support
Smart
VCA Detection by Camera	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
NVR Smart	Smart Intrusion Prevention (SIP), UMD
VCA Search	Behavior Search, Vehicle Search
People Counting	People Flow Counting, Crowd Density Monitoring
SIP by NVR with normal cameras	4-ch
UMD by NVR	8-ch
SIP, Vehicle Detection, UMD by Camera	Total 8-ch
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232	NA
RS485	1
Alarm In	8-ch
Alarm Out	2-ch
PoE
Interface	8 RJ-45 10M/100M self-adaptive Ethernet Interface			16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 130W in total			Max 30W for single port Max 240W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	52V DC/2.5A Power Consumption: ≤ 15W (without HDD)			52V DC/4.6A Power Consumption: ≤ 20W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	380mm × 318mm × 53mm (15.0″ × 12.5″× 2.1″)
Weight (without HDD)	≤1.8Kg (3.97lb)
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC	Part15 Subpart B, ANSI C63.4
