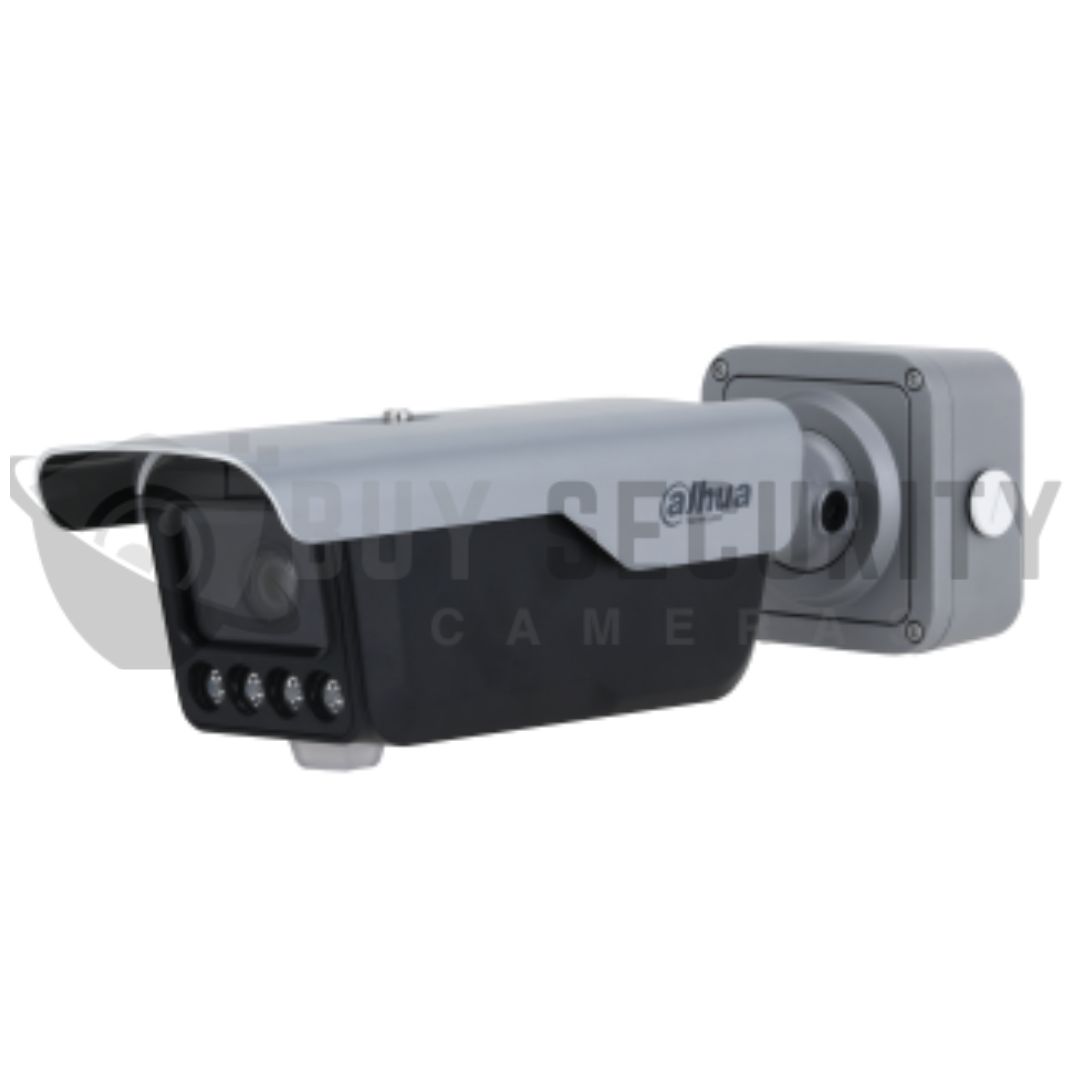

Dahua ITC413-PW4D-IZ1 ANPR Camera – 4MP Motorized Vari-focal, IR License Plate Recognition 2.7-12mm

The Dahua ITC413-PW4D-IZ1 is part of Dahua’s intelligent traffic range and purpose-built for automatic number plate recognition (ANPR) in controlled entry and exit points. It uses a high-sensitivity 1/1.8″ CMOS sensor, 4MP resolution, and deep-learning algorithms to deliver fast, reliable plate recognition for vehicles up to 80 km/h.

Imaging & Recognition

• 4MP resolution (2688 × 1520) at 30 fps

• Motorized 2.7–12 mm vari-focal lens for flexible mounting

• Wide dynamic range (140 dB) for clear images in mixed lighting

• IR illumination (850 nm) up to 30 m, with 10 m optimized for plate capture

• F/1.4 aperture for high sensitivity in low-light conditions

• Scene Self-Adaptation (SSA) automatically adjusts exposure and gain

Analytics & Intelligence

• Deep-learning ANPR engine recognizes plate numbers, vehicle brand, color, and type

• Detects unlicensed vehicles and provides bounding boxes for vehicle tracking

• Supports allowlist and blocklist (up to 110,000 entries each)

• Provides event triggers for barriers, lights, or sirens via relay outputs

• Vehicle access control logic: opens gates automatically for recognized plates

• Intrusion and loitering detection with optional voice or light alerts

Performance Range

• Capture distance: 3 m to 8 m

• Lane width: 3 m to 4 m

• Vehicle speed: up to 80 km/h

• Capture accuracy: ≥ 99%

• Recognition accuracy: ≥ 96% typical, ≥ 98% for standard reflective plates

Build & Reliability

• Weather and vandal protection: IP67 and IK10 ratings

• Operating temperature: –30 °C to +65 °C

• Housing: Aluminium alloy body with anti-corrosion coating

• Power: PoE (IEEE 802.3at) or 12 V DC input

• Power consumption: < 6 W idle, < 12 W with IR, < 17 W with lights and speaker active

• Dimensions: 395 × 121 × 128 mm; Weight: 2.3 kg

Network & Integration

• Supports H.264, H.265, and MJPEG compression

• ONVIF (Profile S/T), CGI, ITSAPI, and Dahua SDK integration

• Compatible with Dahua DSS Pro, DSS Express, and Smart PSS

• 2 × Alarm inputs, 2 × relay outputs, 2 × RS-485 channels, 1 × Wiegand interface

• Built-in microphone (3 m pickup) and 2 W speaker for audio prompts

• Local storage via microSD card up to 256 GB

Applications & Use Cases

• Parking Access Management: Automatically open gates for authorized vehicles.

• Commercial Buildings & Warehouses: Log every vehicle entering or leaving for audit tracking.

• Residential & Gated Communities: Control entry for residents and guests.

• Logistics & Industrial Sites: Manage truck or fleet access efficiently.

• Campus Security: Automate vehicle recognition in universities, hospitals, or airports.
