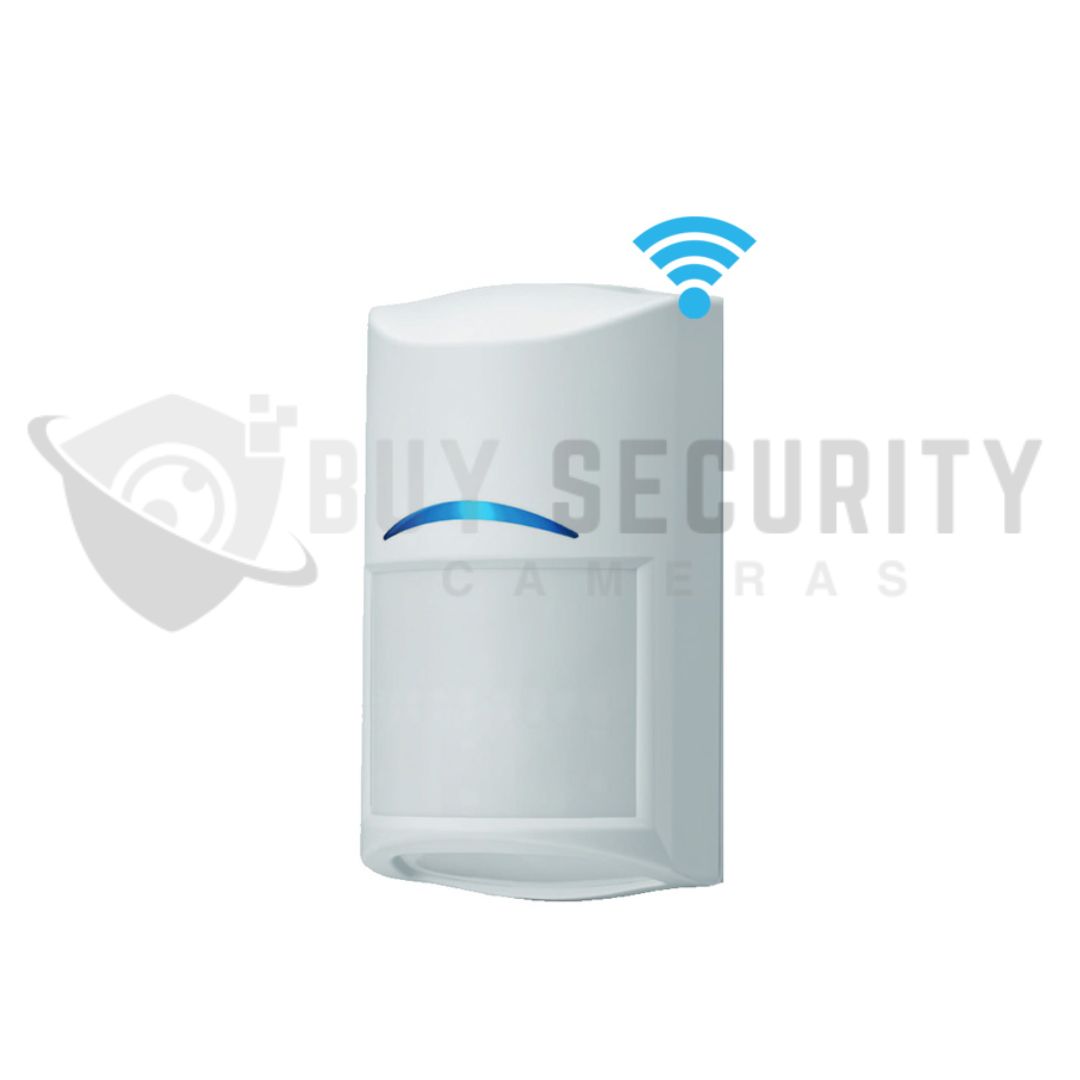

RADION PIR are high performance, Passive infrared (PIR) based motion sensors that use advanced signal processing to provide superior catch performance and unsurpassed false alarm immunity.
RADION wireless security solution from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective.
Battery Requirement
Four AA Alkaline batteries, 1.5VDC (1.5 VDC x 4 batteries = 6VDC total)
Mounting
The recommended mounting height is 2.2 m to 2.75 m (7.5 ft to 9 ft) with no adjustments required. Mount the motion detector level, both horizontally and vertically.
Additional considerations include:
• Temporarily mount the detector using double-sided tape, and test it for both detector coverage and RF
range from the desired location before mounting it permanently.
• Mount the detector where an intruder will most likely cross through the coverage pattern.
• Do not mount in areas with large metallic surfaces such as heating ducts or electrical wiring which may
inhibit the sensor’s RF signals from reaching the control panel receiver.
• Do not mount the detector outdoors or where direct sunlight can reach it.
• In pet immune applications, do not mount where pets can climb into the field of view of the upper zones, which are not immune to pets
Mounting options:
• On a flat wall (surface, semi-flush), with the optional
B335-3 Swiveling low-profile mount, or with the
optional B328 Gimbal-mount Bracket
• In a corner (the junction of two perpendicular walls)
• On the ceiling with the optional B338 Universal Ceiling-mount Bracket
